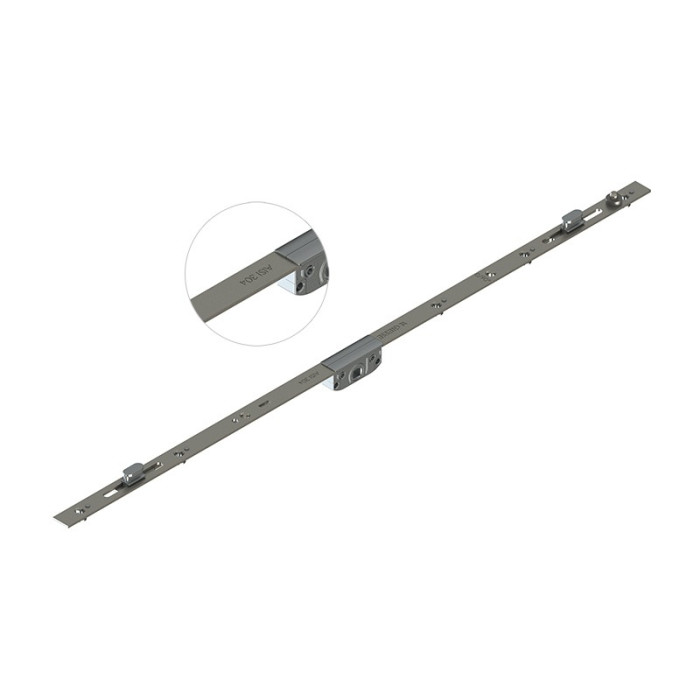

Giesse – CHAMPION PLUS MULTILOCK STAINLESS STEEL

Functions
Complete system of multi-lock rods (1 to 3 points) for sliding windows or balcony-doors made of aluminium.

Technical Features
Three versions are available:

• Backset 7.5 mm (1 to 3 locking points)
• Backset 15 mm (1 to 3 locking points)
• Backset 15 mm with lock (3 locking points)

All the rods are operated by traditional window handles or recess handles equipped with a 7 mm square pin.

These multi-locks have 2 operating positions:

• 0° CLOSED SASH
• 90° OPEN SASH

Depending on the series used, the rods have to be matched with specific cou-pling kits designed to adapt them to the various shapes of the profile.
The strength of the mushroom nib is greater than 150 kg.
The Champion Plus fastening rods with 2 and 3 locking points are compatible with the incorrect movement safety device art. 02770, which prevents the win-dow handle from returning to the closed position with the sash open.
