Giesse – CHAMPION PLUS MULTILOCK 0-180

Functions

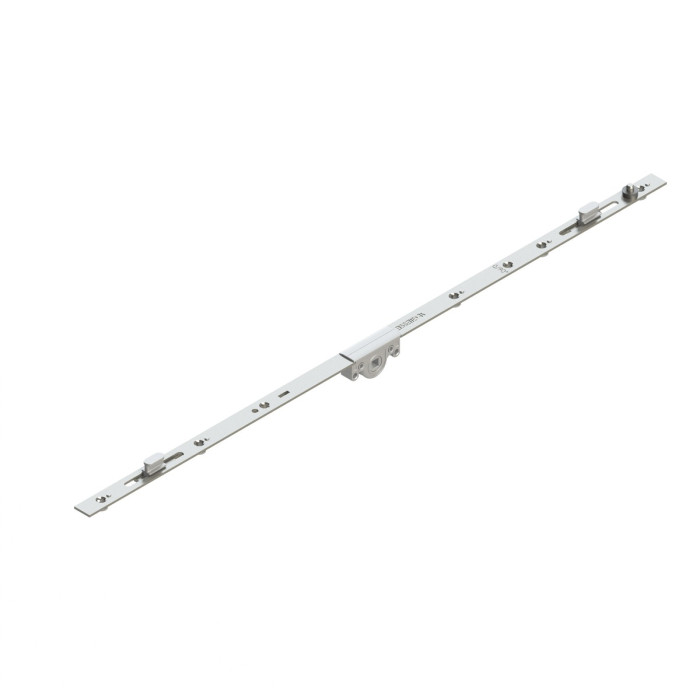

Complete system of multi-lock rods (1 to 3 points) for sliding windows or balcony-doors made of aluminium.

Technical Features
Available in two versions:

• Backset 15 mm (1 to 3 locking points)
• Backset 15 mm with lock (3 locking points)

All the rods are operated by traditional window handles or recess handles equipped with a 7 mm square pin.
These multi-locks have 3 operating positions:

• 0° CLOSED SASH
• 90° OPEN SASH
• 180° OPEN SASH

The movement of the sash with a 180° handle allows for increased opening (ideal for systems with retractable sash).
NOTE: for the micro-ventilation function, refer to the CHAMPION PLUS LOCKING ROD WITH MICRO-VENTILATION.
Depending on the series used, the rods have to be matched with specific coupling kits designed to adapt them to the various shapes of the profile.
The strength of the mushroom nib is greater than 150 kg.
