Giesse – CHAMPION PLUS 90 MINIMAL MULTILOCK

Functions
Complete multi-locking rods system (2 to 3 points) for aluminium sliding sashes or balcony doors with extremely small sash-to-frame distance (≥ 3.5 mm).
Two versions available with fixed and adjustable nibs.

Technical Features

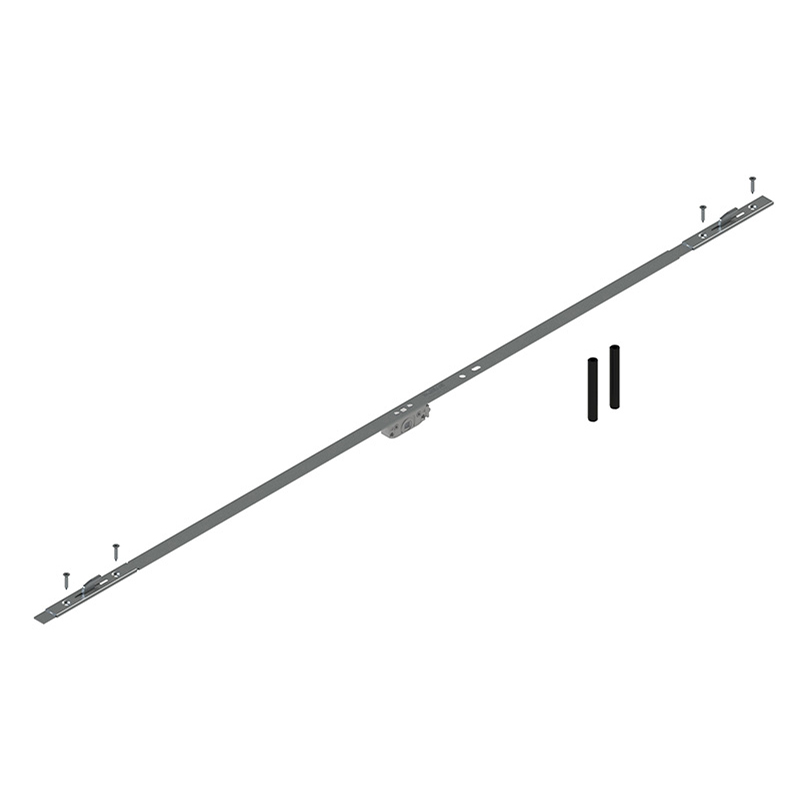

Champion Plus 90 Minimal rods with fixed sashes are available with 16 mm backsets and three different lengths: 600 mm (2 points), 1000 mm (2 points) and 1600 mm (3 points).

All rods can be operated by traditional window handles or recess handles with 7 mm square.
These multi-locks have 2 operating positions:
1) 0° SASH CLOSED
2) 90° SASH OPEN

All rods can be fitted with locks using the additional device art. 06490.
Made of stainless steel and zamak, these multi-locks achieve corrosion class 5.
In the version with adjustable nibs, the rods have adjustable locking points with an adjustment range of 8 mm (+5/-3 mm).
