Q-LON FOAM WEATHER SEALS

The unique Q-LON seals made from a special polyurethane foam, contained in a weather resistant polyethylene liner.

A combination of polyurethane, polypropylene (or polycarbonate) insert and polyethylene liner makes Q-LON one of the best weatherseals in the world. Suitable for timber, PVC and aluminium windows and doors in compression and sliding applications.

Features

Excellent memory
Returns to its original shape after being compressed up to 50% more than other extruded seals, even at extremely low temperatures.
Very low thermal conductivity
Q-LON offers the lowest thermal conductivity on the market (0.04 W/m•K at 0ºC), 3 to 6 times better than other materials.
Perfect adherence
The window requires low compression force when closing. Q-LON therefore continues to provide a tight seal even when the window undergoes alterations due to temperature fluctuations or ageing.
Everlasting
The external polyethylene film is not altered by paints, detergents or dyes. It is highly resistant to atmospheric conditions and UV radiation.
Excellent sound insulation
Exceptional acoustic insulation performance thanks to high compression ability.
Fire retardant
Seals classified to EN 13501-1, Class E, designed to reduce the spread of fire when in contact with it, slowing the speed of flames and avoiding the dispersion of flammable material.
Also for sliding
Compared with common brush seals, Q-LON offers highly superior air/water tightness, noise insulation performance and styling. Tested for friction damage on sliding doors to 40,000 cycles.
Previous slide
Next slide
  • Excellent recovery after compression, even at low temperatures
  • The lowest thermal conductivity on the market (0.04 W/m•K at 0 ºC)
  • Low compression force required
  • The outer film is not altered by paints, detergents and colourants
  • High resistance to weather and UV rays
  • Exceptional sound insulation performance
  • Wide range of colours
  • Fire retardant version available
Q-LON composition

FILM

Polyethylene (PE) film
Smooth or embossed surface.
Weather and UV-resistant.

FOAM

Polyurethane (PU) foam core
High durability, superior recovery performance.

INSERT

Polypropylene (PP), polycarbonate
or with glass fibre cord
Prevents elongation and shrinkage.

Applications

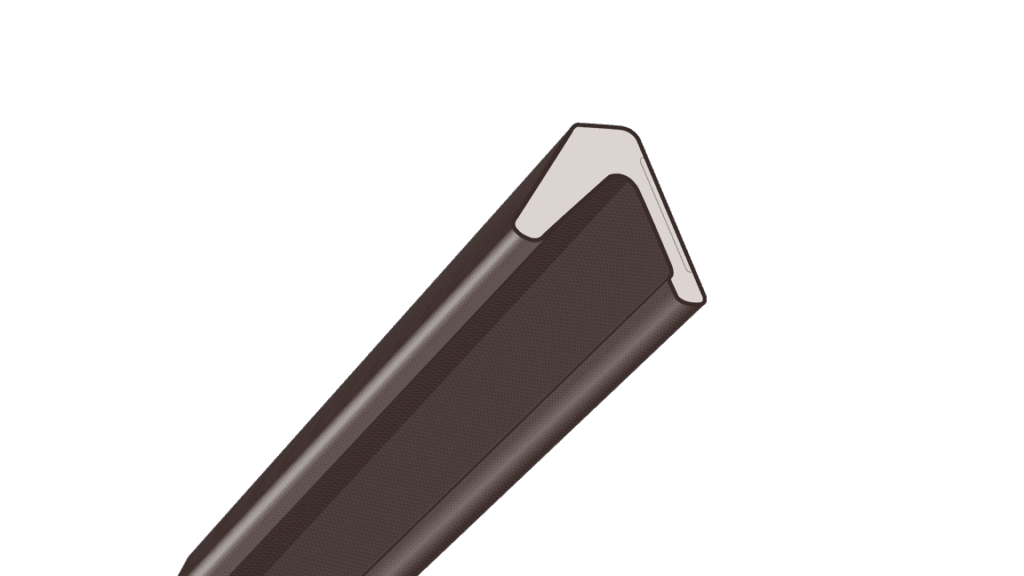

Q-LON universal applications

Universal

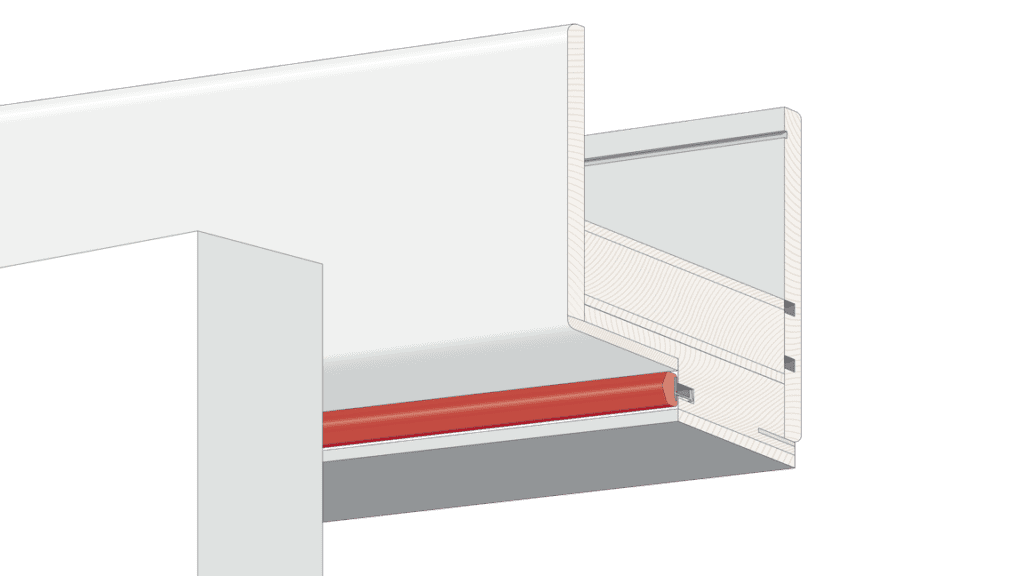

Q-LON timber doors and furniture

Timber doors and furniture

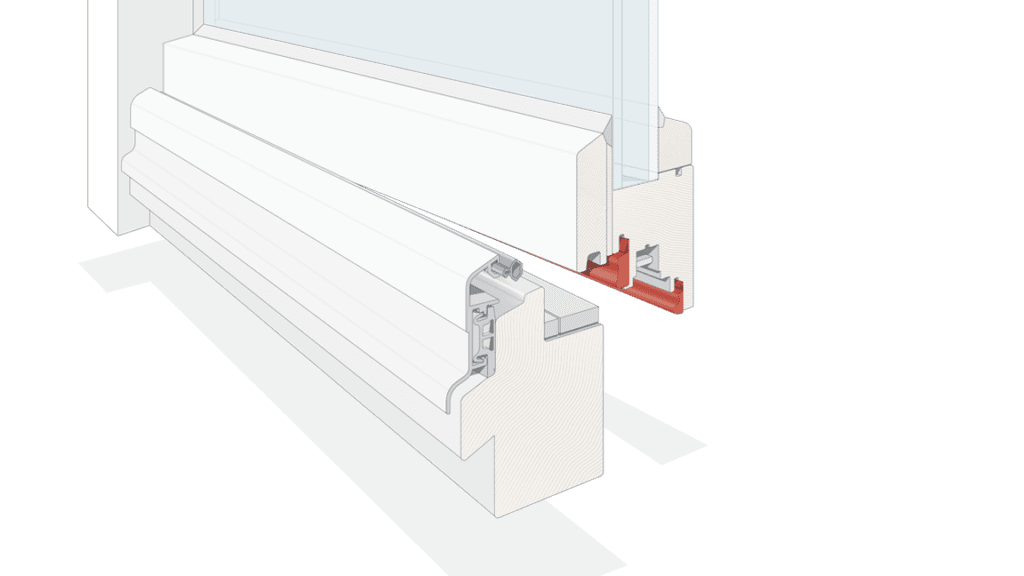

Timber windows

Timber windows

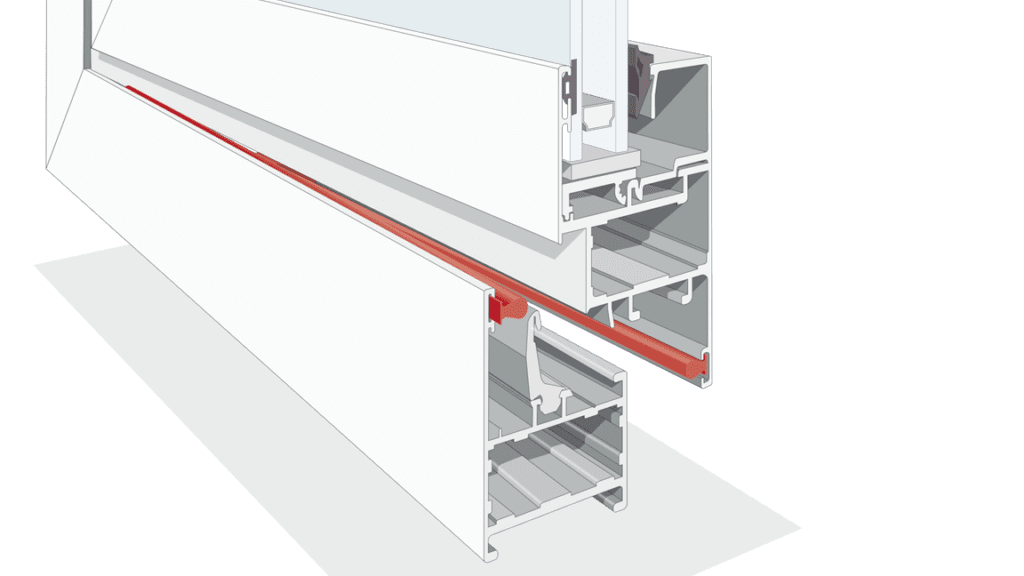

Q-LON aluminium applications

Aluminium windows and doors

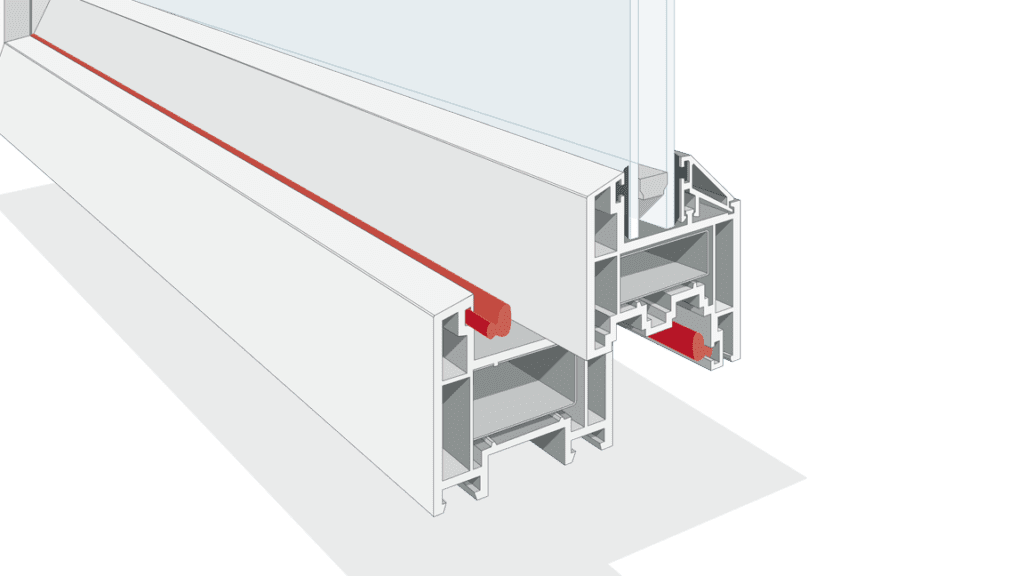

Q-LON PVC applications

PVC windows and doors

Certifications

Cradle to Cradle Certified®

Cradle to Cradle - Silver

The foremost certification for environmentally sustainable products. Q-LON has achieved Silver level in all 5 categories of human and environmental health. A reliable commitment to sustainability in all aspects of company and production processes.

Cradle to Cradle Certified® is a registered trademark of the Cradle to Cradle Products Innovation Institute.

EN 12365 2003 weatherseal classification

Under EN 12365 2003 there is a prescribed classification system that enables window, door, shutter and curtain walling manufacturers or installers to ensure that they are using the component that best meets their requirements.

Q-LON consistently delivers the highest levels of performance, especially when it comes to Deflection recovery and Recovery after ageing.

Other certifications and testing

  • ISO 9001
    International Quality Standard controlling the manufacturing process.
  • EN 12365
    Performance requirement and classification of gaskets for fenestration.
  • Thermal Conductivity
    Tested to EN12667:2001 ; D = 0.041 W/(m · K). Low thermal transmittance supports improved window classification.
  • UV Resistance
    Accelerated weather test acc. to DIN EN ISO 4892-2 – Surface liner. Tests at: 2 GJ/m², 4 GJ/m² (6 GJ/m², 8 GJ/m²) for improved longevity.
  • Compression Set Testing
    Based on EN12365-4. Recovery after aging at maximum working temperature. For improved sealing life.
  • Komo (Netherlands Standard)
    KOMO is the premier quality mark for the building and infrastructure sector in the Netherlands.
  • Extreme weather resistance (Russian Standard)
    TU5775-001-4900-1519-07. Testing various properties and performance of seals at extreme climatic conditions – eg -60oC.

Colour range

The colours listed below are subject to availability and can be offered upon request. Depending on the configuration, special conditions for minimum order quantities, lead time, packaging and price may apply.

Standard colours

Brown, White, Black and Silver are the main standard colours.

Extra colours

Extra colours include Beige, Light Oak, Ochre Brown, Fawn Brown, Chestnut Brown, Pure White, Light Grey, Dark Grey, Graphite Grey.
