06.2025
The CELERA hinge has been updated.
Giesse further simplifies installation and adjustment.

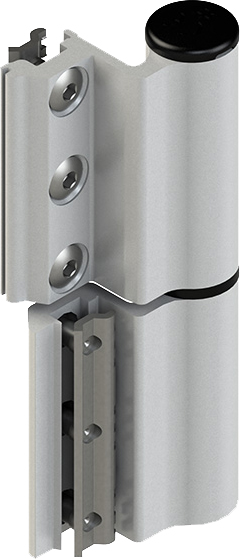

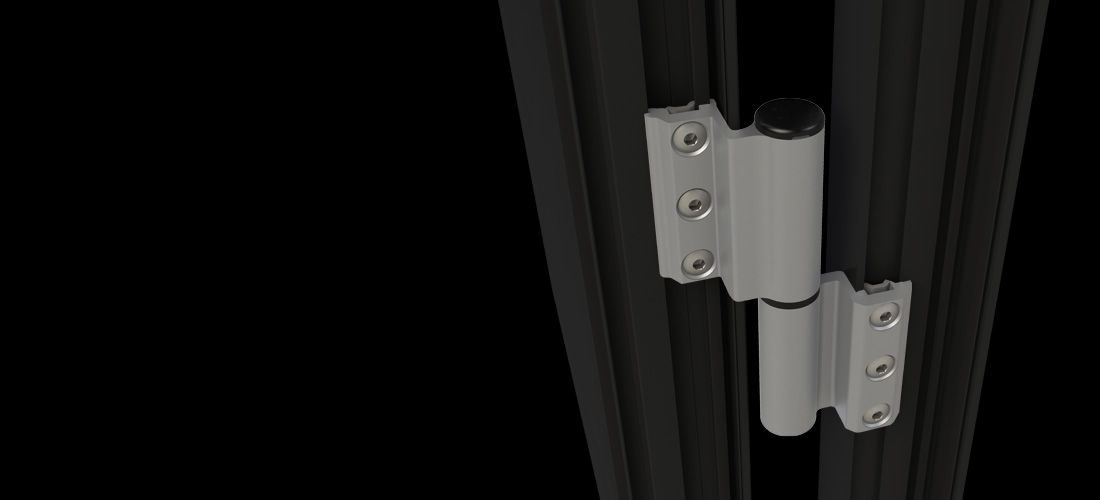

Giesse, part of Quanex, presents the evolution of Celera, the clamp hinge for aluminum doors that is already well-regarded for its quality and reliability.
Thanks to InstaFit, the system aims to further simplify assembly and make adjustments even more straightforward.
Key new features introduced in Celera include:
- Redesigned bushing with integrated lateral adjustment mechanism;
- Updated sash extrusions with integrated end stop for lateral adjustment;
- Reinforced end cap with central cylinder for improved retention within the bushing.
The fundamental features of the hinge remain unchanged, continuing to ensure high performance and long-term reliability.
In summary:

Load capacity
- x2 = up to 100 Kg
- x3 = up to 120 Kg

InstaFit
- Celera is supplied with pre-assembledfixing plates and therefore it can be quickly installed on both the sash and frame during the door or window positioning.

Adjustment
- Lateral= ± 1 mm
- The adjustment can be made using hex head key (CH 6).

Opening
- Max 180°.

Certification
- The hinges are CE marked according to EN1935 (200,00 cycles) and also applicable on safety exits.
