Brush Pile seals

Schlegel high quality woven brush pile seals and extruded sealing profiles for aluminium, PVC and timber applications.

Schlegel offers a wide range of woven brush pile seals and extruded sealing profiles with brush pile for application in the fenestration industry, window covering business, interior design and other areas. Pile fibres move independently and are flexible, they seal perfectly against moving elements and also uneven surfaces.

FEATURES

All Schlegel brush pile seals are made from polypropylene (PP) and come with numerous options.

EASY SLIDING
Excellent resistance to abrasion and static build-up and low friction for improved sliding performance.
VERY LOW AIR PERMEABILITY
The fins offer better air tightness.
DURABLE
UV stable and chemically inert for a prolonged life.
RESISTANT
PP yarn treated with silicone to resist water, mould and mildew.
EASE OF INSERTION
Reinforced fabric backing, extruded base or carrier profile for optimum ease of insertion.
Previous slide
Next slide
  • Available in many different widths and heights
  • Reinforced woven backing, extruded base for optimal ease of insertion or carrier profile
  • With optional adhesive backing based on hot-melt (HM) glue technology
  • PP yarn treated with silicone to resist water, mould and mildew
  • Different densities depending on seal type, width and mounting distance
  • Standard soft multifilament yarn in many different
    colours
  • Untreated monofilament yarn for increased stiffness
  • Heat set for recovery after compression
  • UV stable and chemically inert
  • Excellent resistance to abrasion and static build-up and low friction for improved sliding performance
  • Optional central or lateral fins for additional draught proofing
  • Cradle to Cradle Silver level certification

Range

For aluminium and uPVC sliding windows and doors

Poly-bond brush pile

Poly-Bond (PB)
Woven brush pile seals

Fin-seal brush pile

Fin-Seal (FS)
Woven brush pile seals
with central fin

Dust-plug brush pile

Dust-Plug (DP)
Woven brush pile seals
with central fin

Power-pile brush pile

Power-Pile (PW)
Extruded brush pile seals

Fin-Pile brush pile

Fin-Pile (FP)
Extruded brush pile seals
with central fin

G3 brush pile

G3
Extruded brush pile seals
with central fin

G3-QF (Quadrafin)
Extruded brush pile seals
with external fins and double central fin

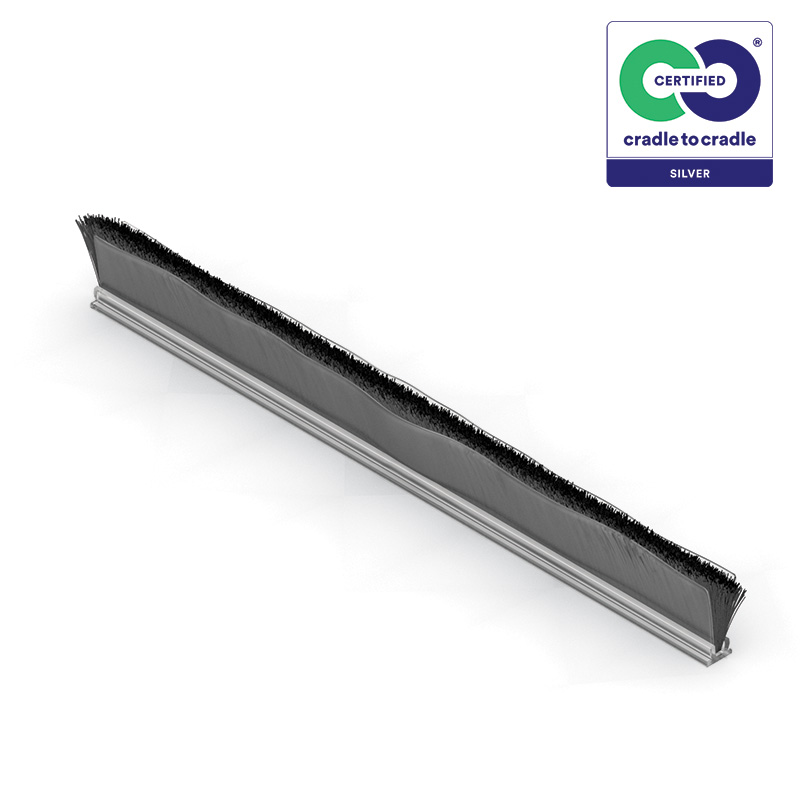

Bi-Fin brush pile

Bi-Fin (BF)
Extruded brush pile seals
with external fins and central fin

For shutters and screens

Shutter-pile brush pile

Shutter-Pile (SP)
Woven brush pile seals

Angle-pile brush pile

Angle-Pile (AP)
Extruded brush pile seals

For special grooves

Skirting-fringe brush pile

Skirting-Fringe (SF)
Extruded brush pile seals

For revolving doors, escalators, garage doors and industrial doors

Flex brush brush pile

Flex-Brush
Coilable brush pile seals

For timber windows and doors, furniture, HVAC systems

Kerf pile brush pile

Kerf Pile (KP)
Extruded brush seals

Combination Brush Pile seals

Combination
Brush pile seals

Colour range

The colours listed below are subject to availability and can be offered upon request. Depending on the configuration, special conditions for minimum order quantities, lead time, packaging and price may apply.

Multifilament

Brown, White and Black are the main standard colours. Other standard colours include Beige, Dark Gold, Pale Brown and Grey.

Multifilament pile and yarn colours for non-standard colours include Ivory, Iron Grey, Dark Beige, Sepia Brown.

Monofilament

Grey, Black and Natural are the main standard colours.

Discover all colours
