Arms – Outward Opening

In the world of architectural design and construction, attention to detail is paramount. The choice of arms for curtain wall, top-hung and side-hung outward opening windows plays a pivotal role in achieving both functionality and aesthetics. Discover how precision-engineered arms for these window types can elevate architectural projects to new heights.

  • Architectural Versatility: Regardless of whether you’re working on expansive curtain walls, top-hung windows for unique ventilation needs, or side-hung windows for easy access, arms offer architectural versatility. They are designed to adapt to various window configurations, helping to bring a specific architectural vision to life.
  • Durability and Reliability: Built to endure the test of time, these arms provide exceptional durability and reliability. Crafted from high-quality materials, they resist wear and maintain their integrity over extended periods, ensuring long-lasting performance in diverse environments.
  • Design Harmony: arms for outward openings are engineered to maintain design harmony with projects. They seamlessly blend with the overall aesthetics of structures, ensuring that both form and function coexist in perfect balance.

Explore Our Range of Arms

We offer a comprehensive range of arms designed specifically for curtain walls, top-hungand and side hung outward opening . These solutions are meticulously engineered to cater to the diverse needs of professionals in the architectural and construction industry. We understand that every project is unique, and our commitment to excellence ensures that you receive arms that not only meet but exceed industry standards.

arms

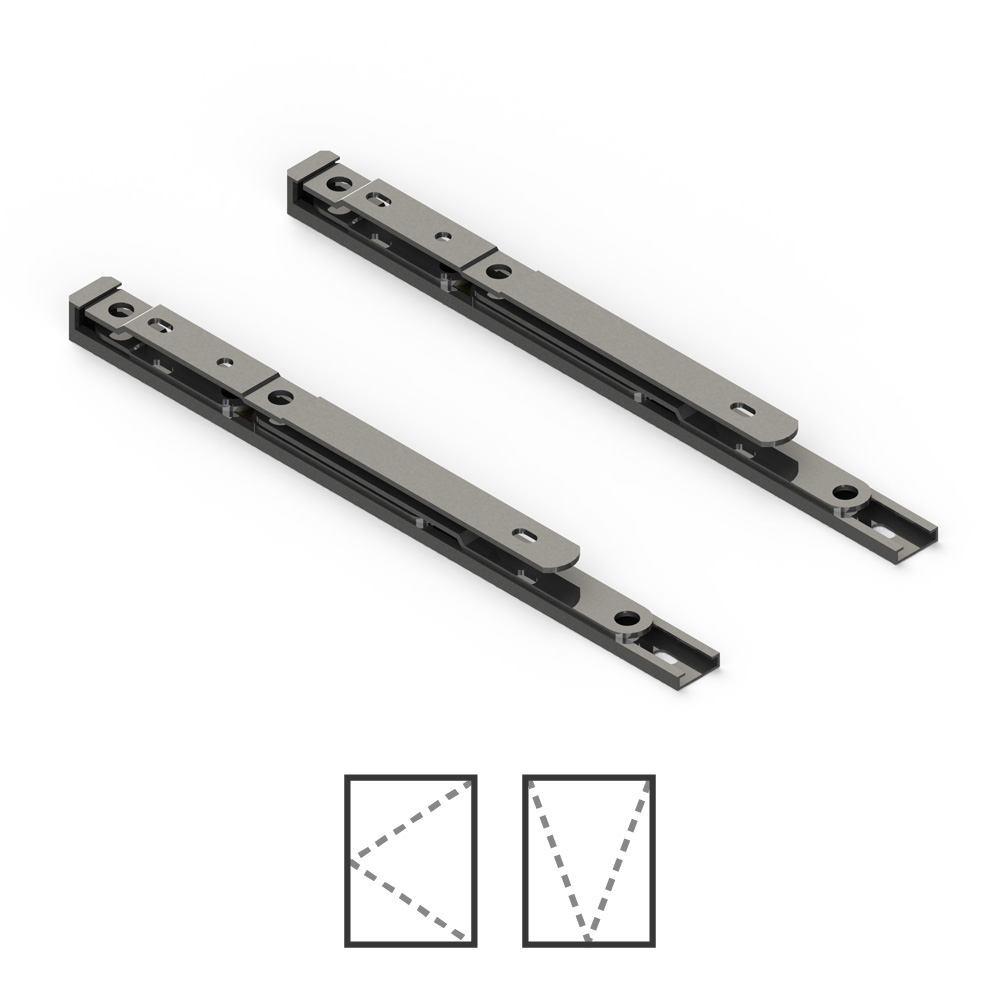

GS HD Type A
Top/side-hung window
Max load capacity: 35 Kg
Sash-frame distance: 15.5

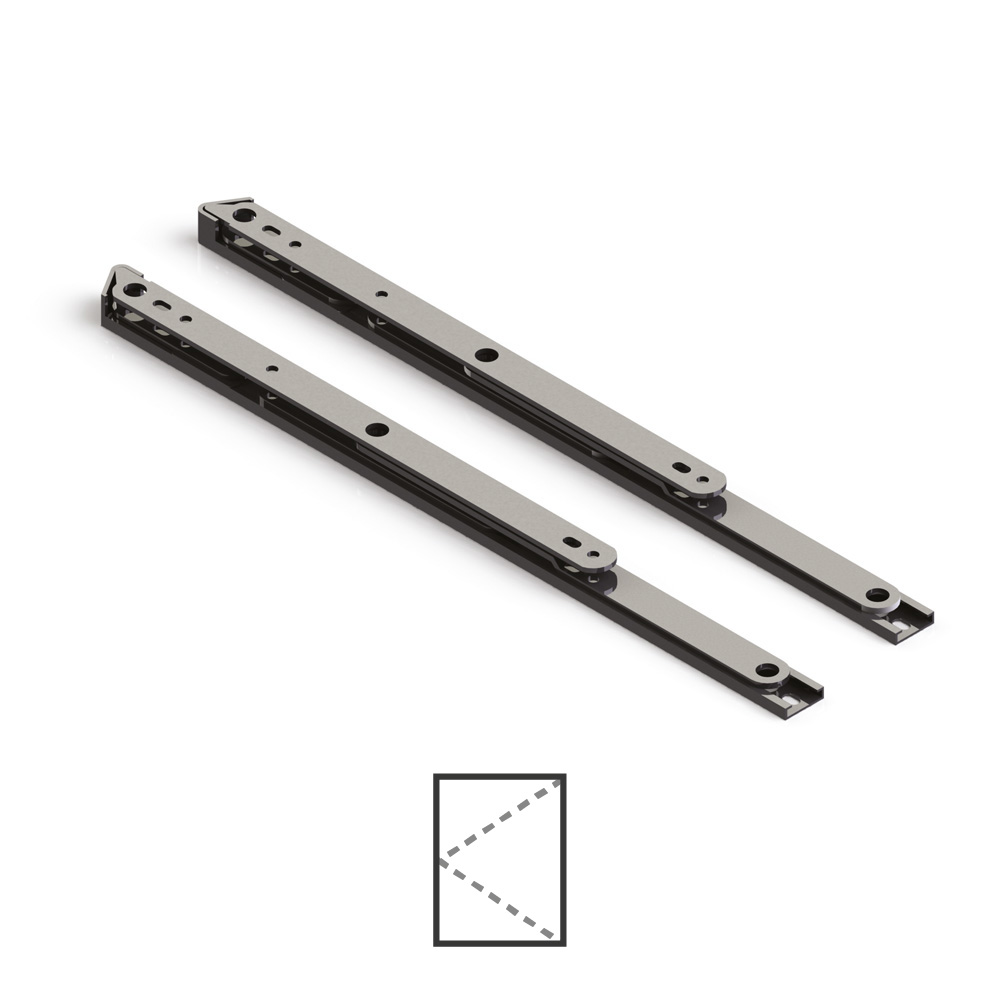

GS HD Type C
Side-hung window
Max load capacity: 45 Kg
Sash-frame distance: 15.5÷16.5
Maximum arm length: 463mm
Maximum height: 1200

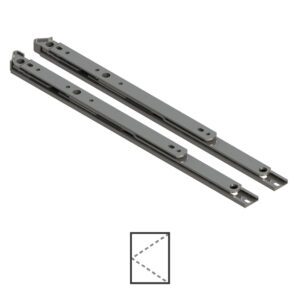

GS HD Type C plus
Side-hung window
Max load capacity: 45 Kg
Sash-frame distance: 16.5
Maximum arm length: 463
Maximum height: 1800

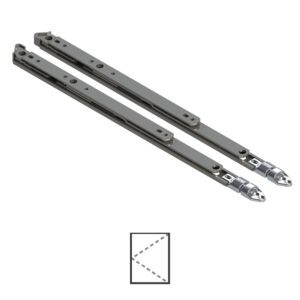

GS HD Type C plus super
Side-hung window
Max load capacity: 45 Kg
Sash-frame distance: 16.5
Maximum arm length: 523.5
Maximum height: 1600
Self-balancing

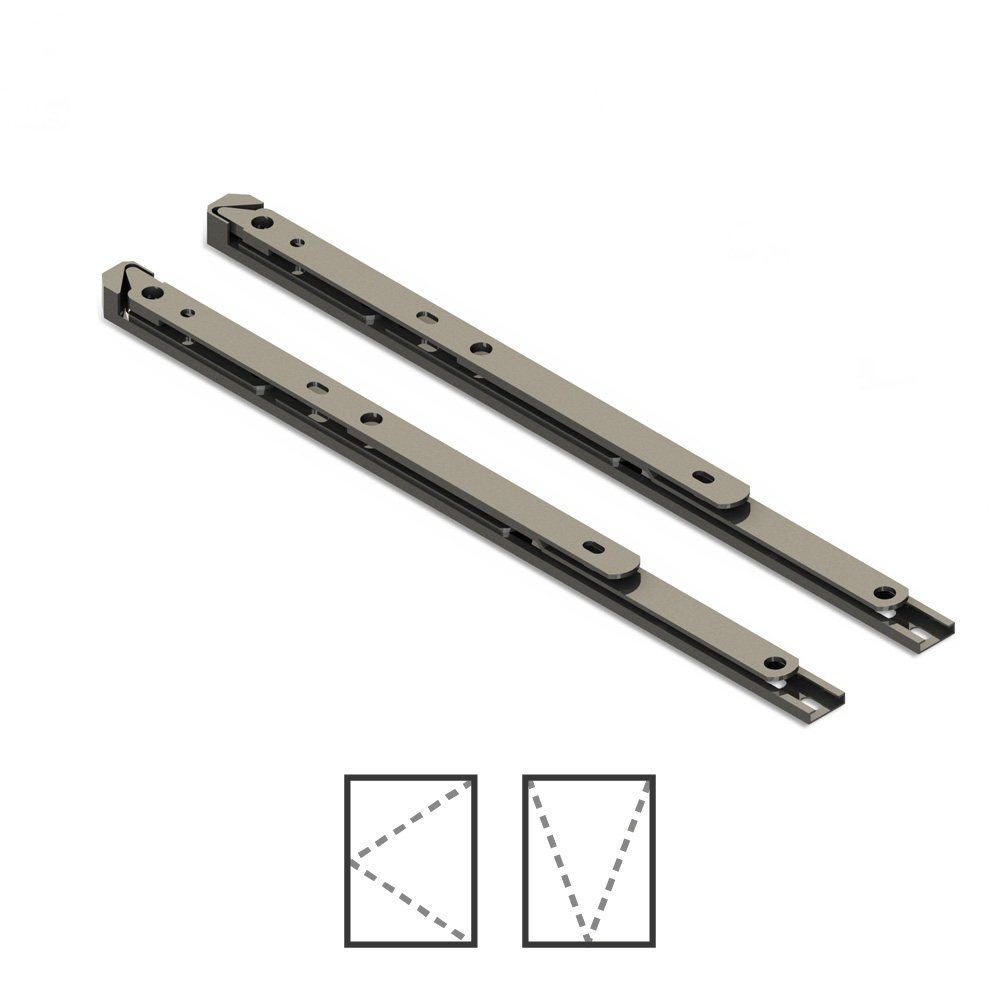

GS HD Type M
Top/side-hung window
Max load capacity: 35 Kg
Sash-frame distance: 13.5

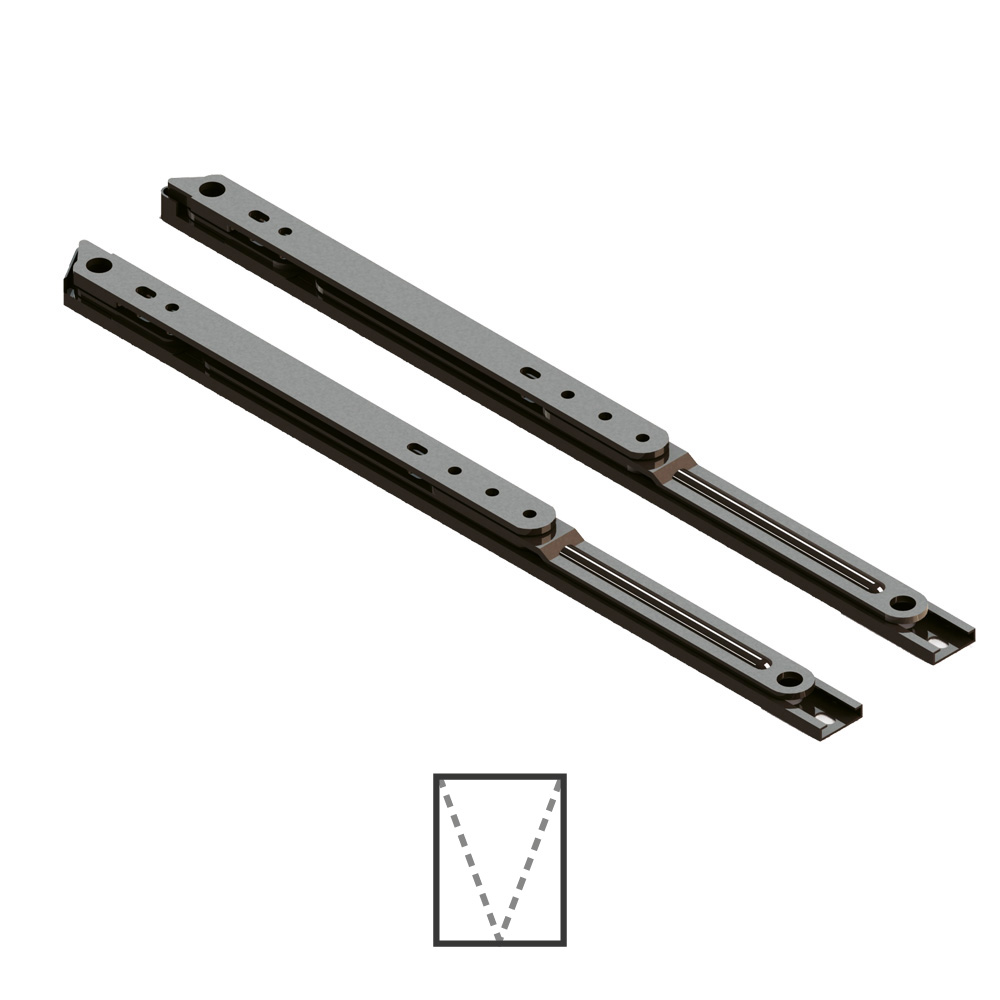

GS HD Type P
Top-hung window
Max load capacity: 180 Kg
Sash-frame distance: 16.5
Maximum arm length: 711

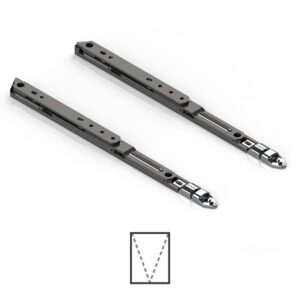

GS HD Type P super
Top-hung window
Max load capacity: 155 Kg
Sash-frame distance: 16.5
Maximum arm length: 768

GS HD ARMS TYPE TS
Top/side-hung
Max load capacity: 100 Kg
Sash-frame distance: 11.5÷ 16.5

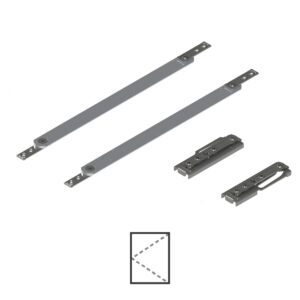

Lotus
Side-hung window
Length: 300mm

Limitation arms

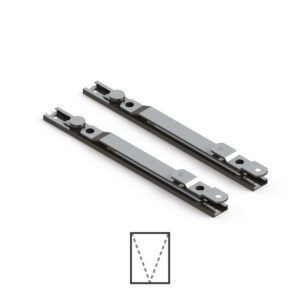

GS HD Type I
Sash-frame distance: 17.5

Compatible with Type A and Type P arms

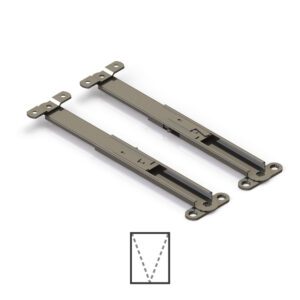

GS HD Type L
Sash-frame distance: 16.5

Compatible with Type A and Type P arms

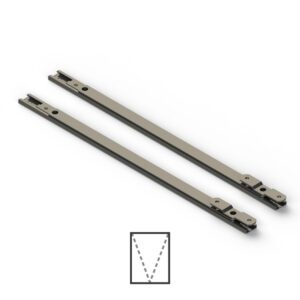

GS HD Type N
Sash-frame distance: 13.5

Compatible with Type M arms

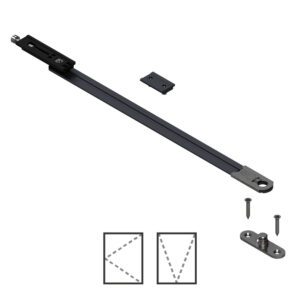

Friz detachable arm
Sash-frame distance: 17.5

Compatible with Type A, Type P, Type C and Euro groove  arms

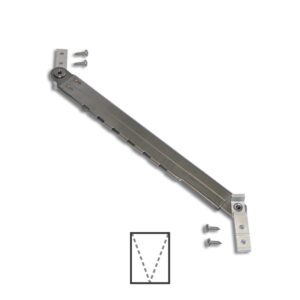

Laser telescopic arm
Various sash-frame distances

5 settings for sash opening at different angles

Parallel arms

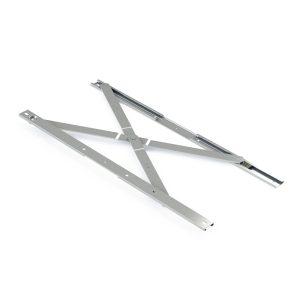

Parallel arms
Sash-frame distance: 17 ÷ 18

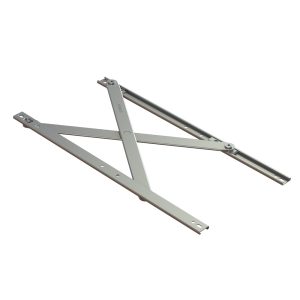

G-TYPE PARALLEL ARMS single
Sash-frame distance: 17 ÷ 24

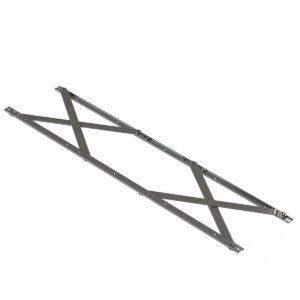

G-TYPE PARALLEL ARMS double
Sash-frame distance: 17 ÷ 24

Collaborate with us

Elevate the functionality and aesthetics of  curtain wall, top-hung, and side-hung outward opening windows with arms that are tailor-made to meet the demands of your architectural vision. Collaborate with us today to explore our extensive range of options and discover how our solutions can enhance projects.
